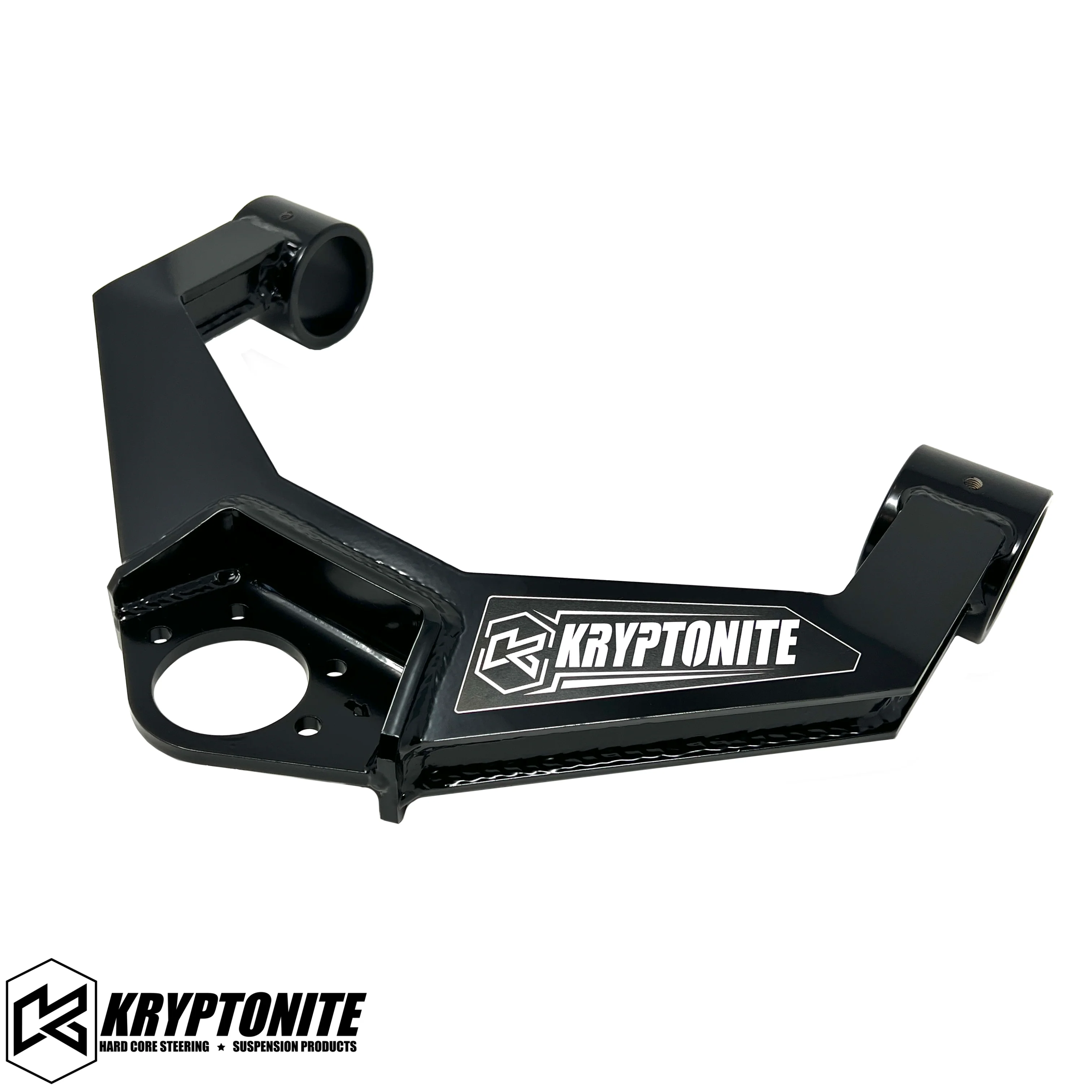

KRYPTONITE UPPER CONTROL ARM KIT FOR 2011–2019 CHEVY/GMC 2500HD/3500HD

Fits:

2011–2019 Chevrolet 2500HD / 3500HD

2011-2019 GMC 2500HD / 3500HD

Important Fitment Details:

Note: When running stock wheels with oversized tires, exceeding 11.50" wide, clearance is limited and may result in rubbing on the control arm. Please contact us before purchasing if you're running this setup.

Features:

• Maximizes Adjustability - These arms optimize suspension geometry, restoring down travel when height is increased via torsion key adjustments.
• Robust Boxed Design - 3/16" plate steel hand and machine welded into an extremely strong UCA.
• Alignment Made Easy - Based on your trucks alignment needs our ball joint can be mounted either on top of or underneath the ball joint pocket making your alignment adjustment super easy to make without inducing extreme angles.

• Covered by a Lifetime Warranty - Industry leading lifetime warranty coverage to the original purchaser

Description:

Kryptonite Upper Control Arms are built for serious strength, precision fitment, and long-term durability. Laser cut, machine formed, and TIG welded, these control arms are engineered to improve ride quality on any leveled, lifted, or even stock-height GM 2500–3500 HD truck. Compatible with most aftermarket suspension systems, these arms are a true upgrade over factory components.

**GREASE PORT LOCATION IMPROVEMENTS:
Accessing UCA grease fittings is now easier with updated port locations. Kits include multiple grease fittings and port plugs for maximum serviceability regardless of arm position.

Ball joint Service interval: 3 pumps of grease upon installation then every 5-7k miles. Use only a small amount of grease per joint—do not over grease.

Kit Includes:

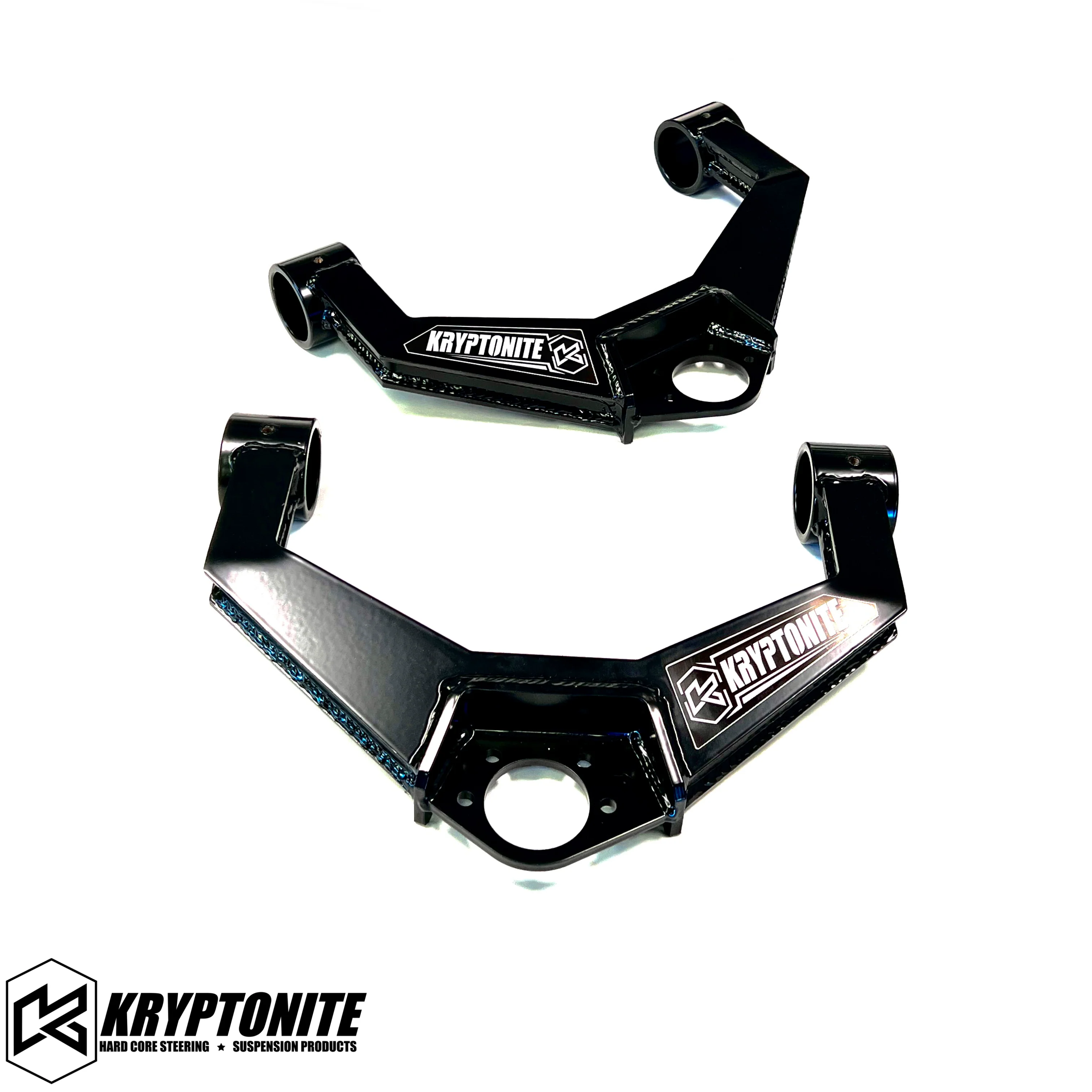

• 1 x Kryptonite Upper Control Arm Pair
• 4 x Control Arm Sleeves
• 8 x Control Arm Bushings
• 2 x Kryptonite Bolt-On Upper Ball Joints
• 1 x Hardware Package

Instructions:

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

Warranty:

(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase. Complete warranty details can be found [here].
